Half scale sprint car buck

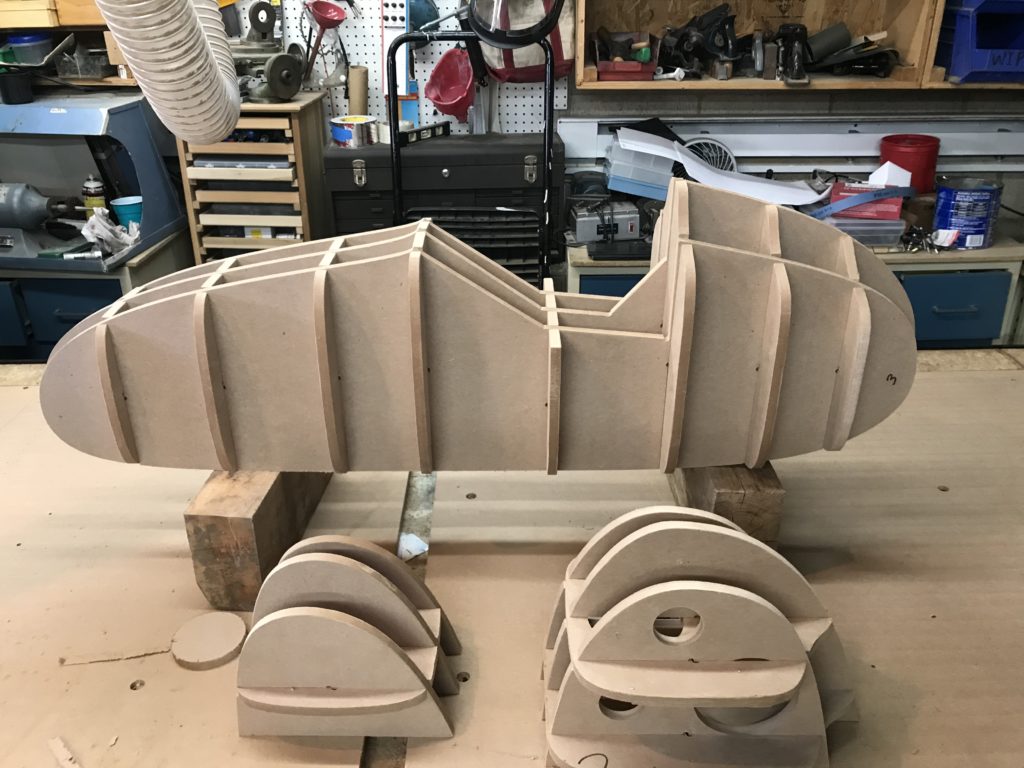

1/2 scale MDF buck for metalshaping. About 4 feet long.

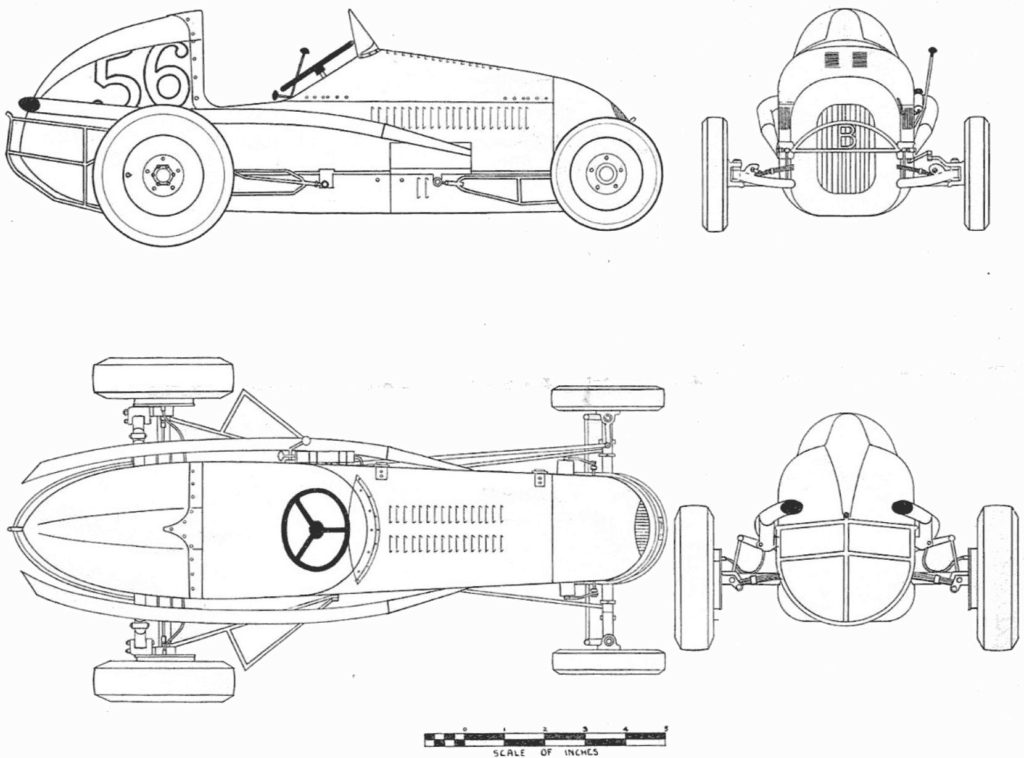

Source blueprints

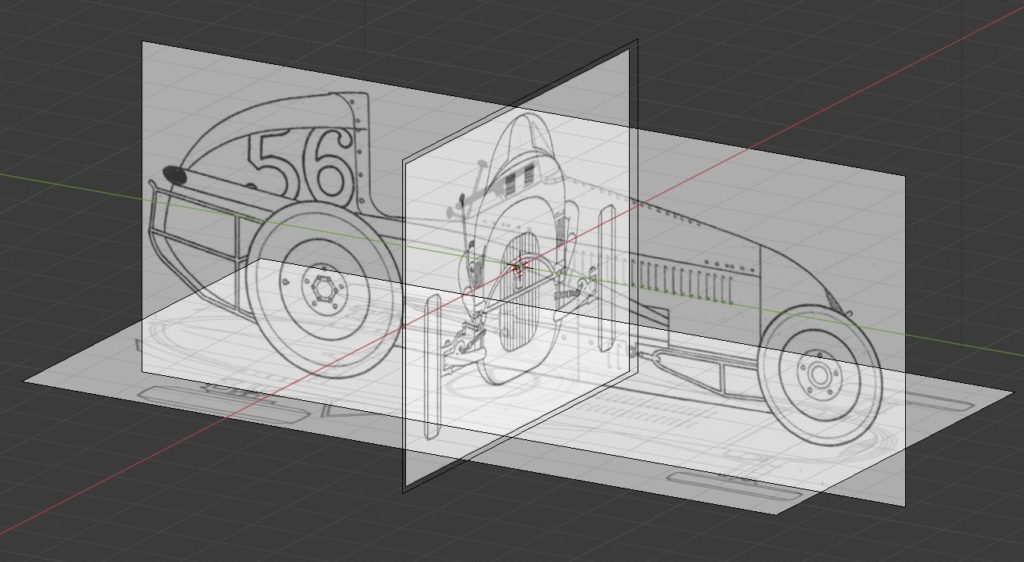

Blueprints mounted in Blender 2.8

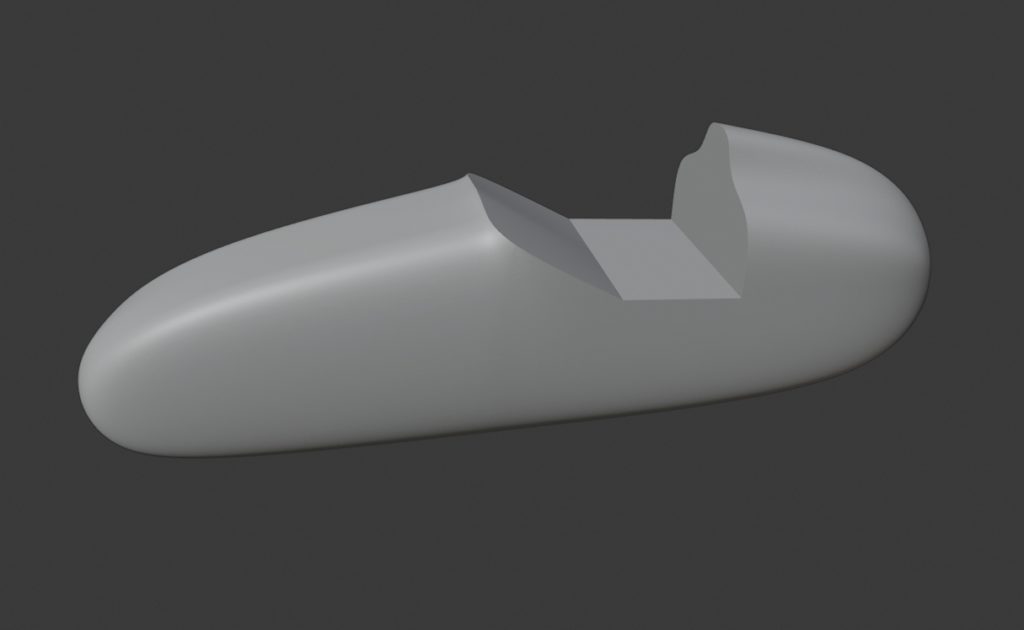

Blender 2.8 sprint model.

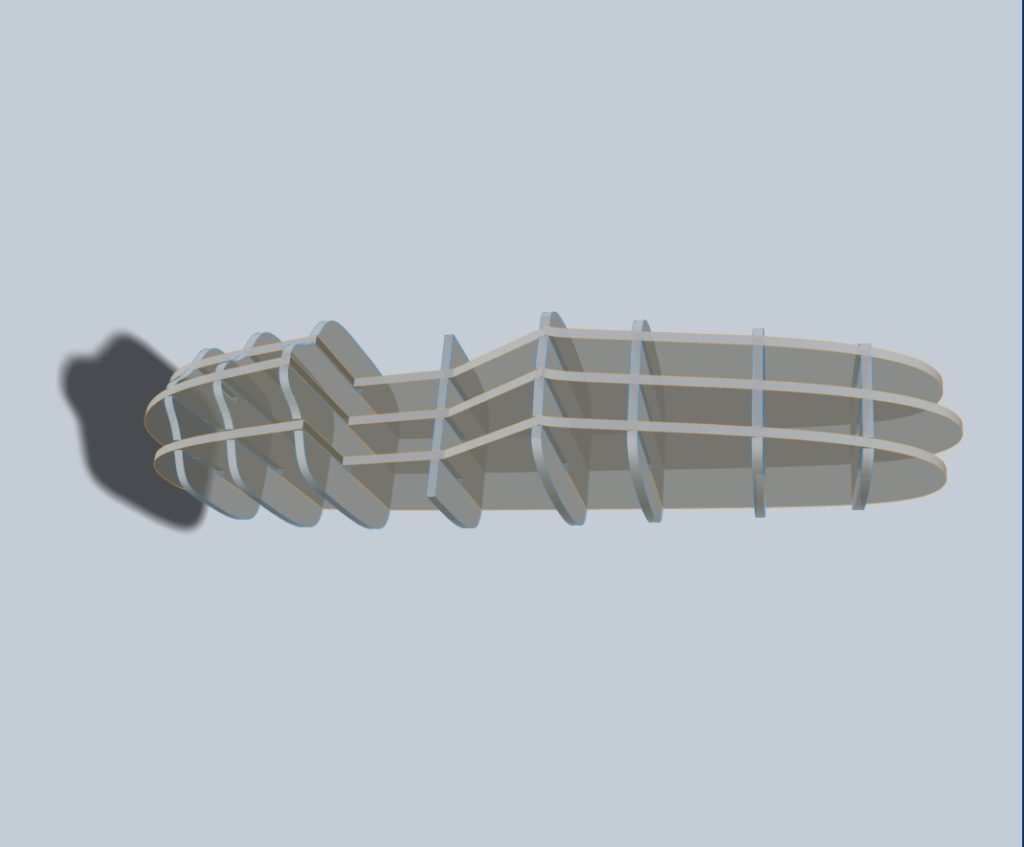

Fusion 360 Slicer Buck Pattern. Stand alone program. Used STL from Blender

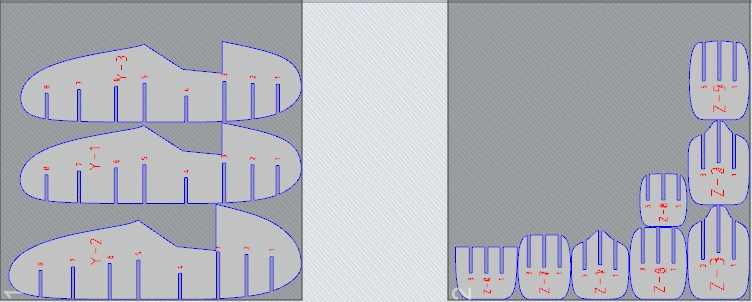

DXF output of F360 Slicer. Goes to VCarve Pro to develop tool paths for CNC.

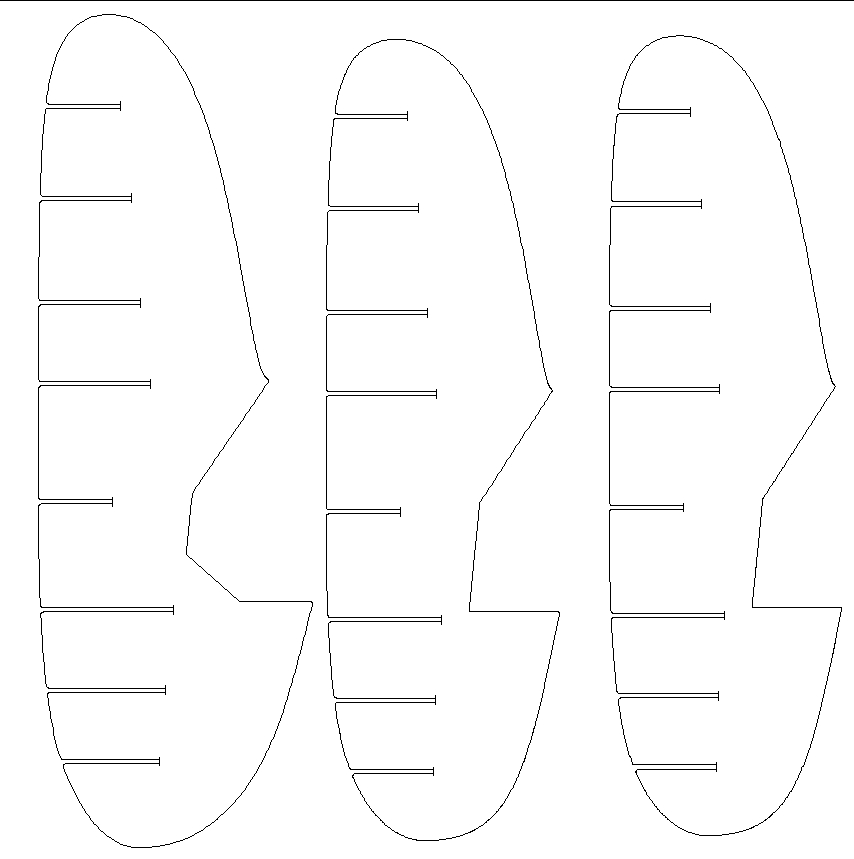

VCarve Pro tool paths for longitudinal frames

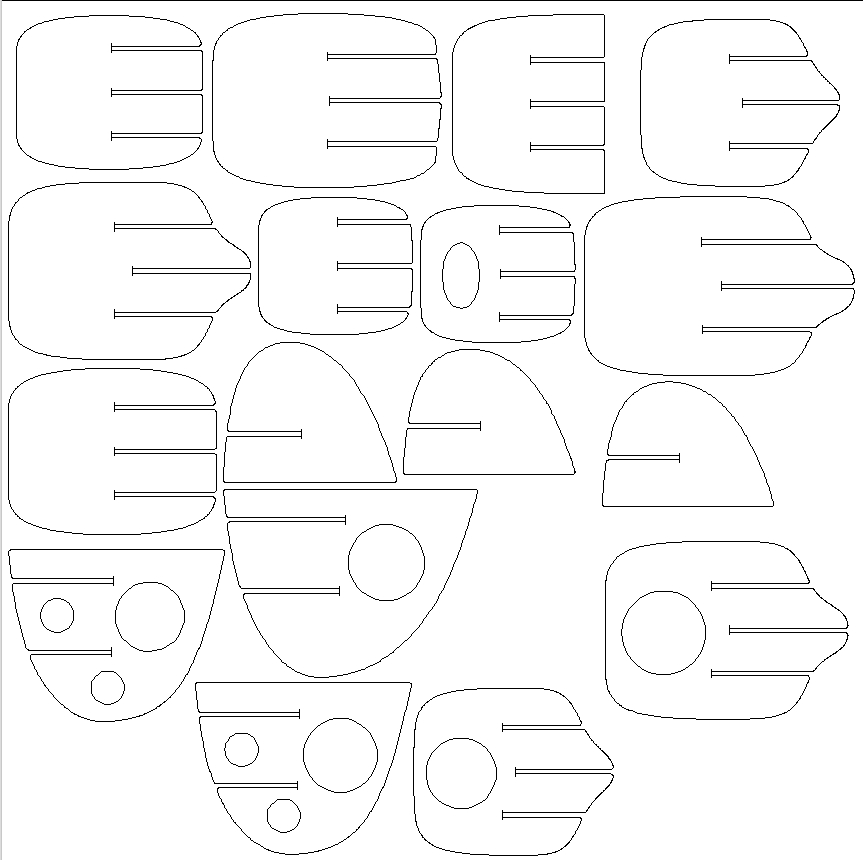

VCarve Pro tool paths for transverse frames
CNC Router cutting frames

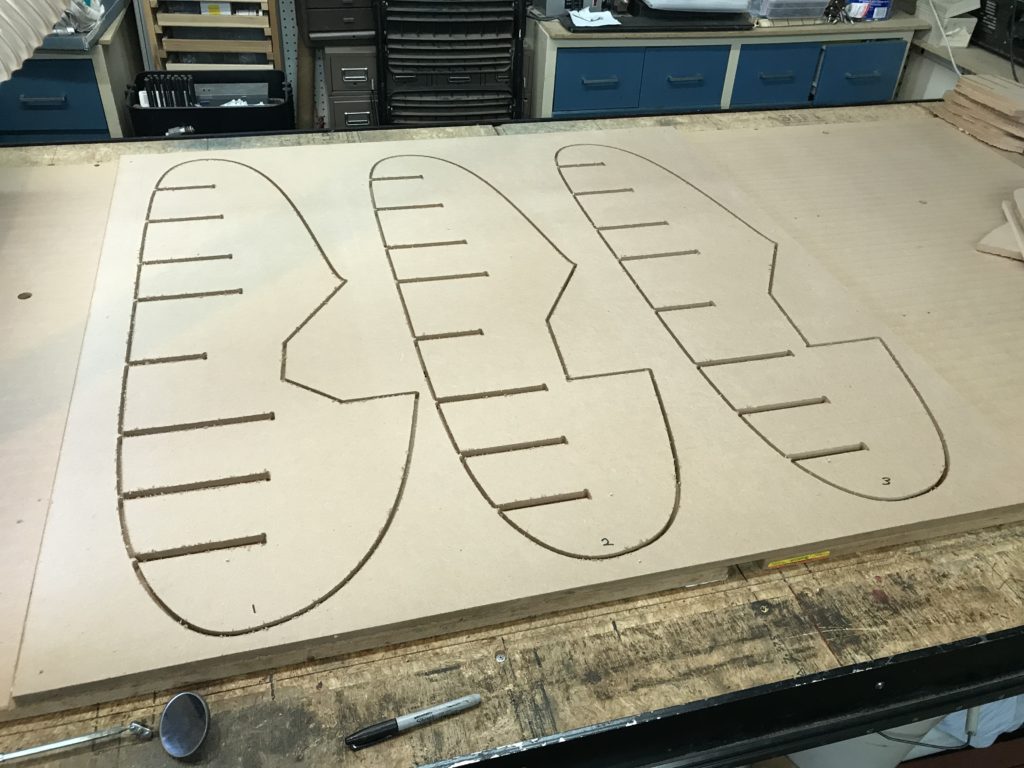

Long frames cut

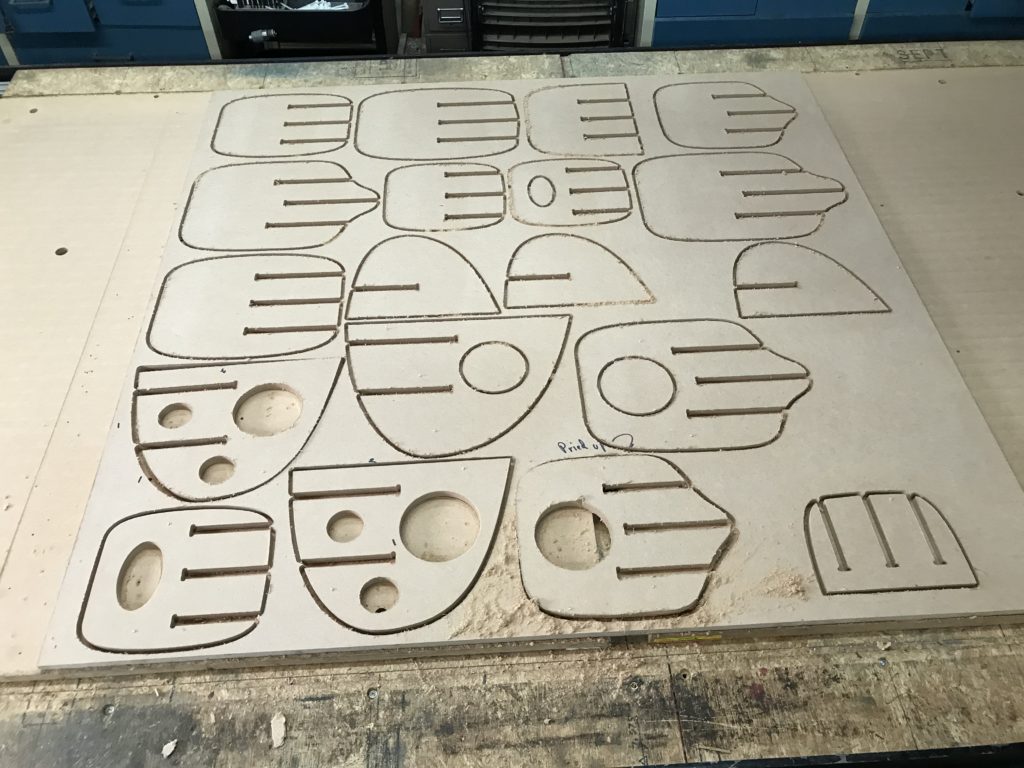

Short frames cut

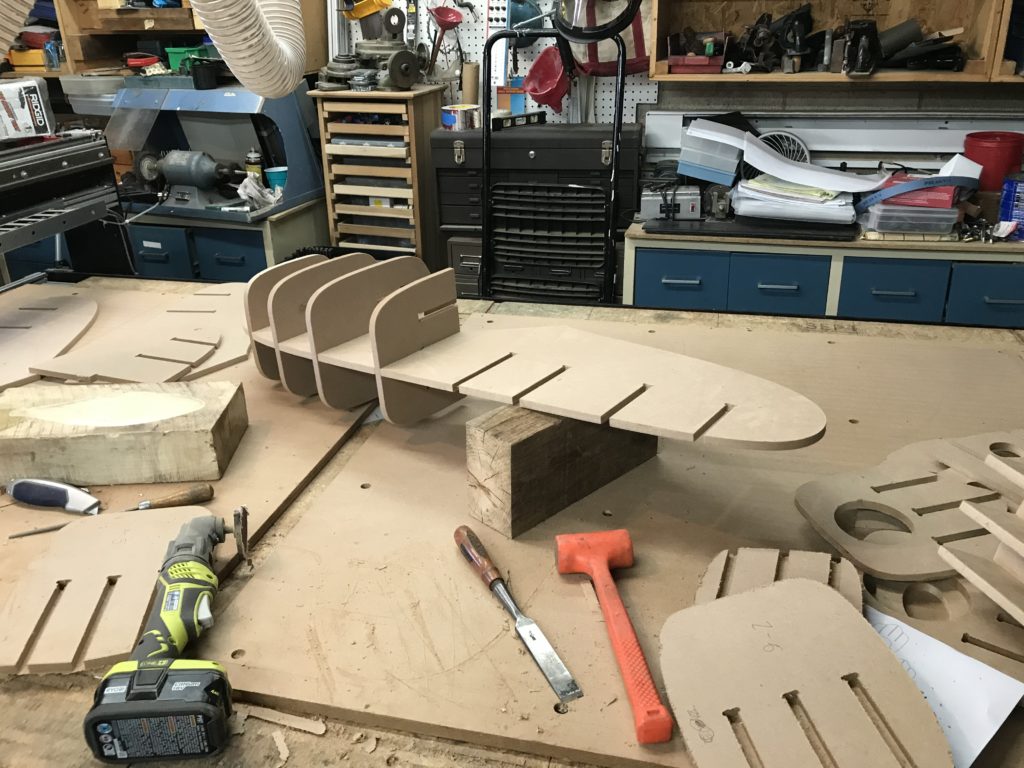

Assembling the buck
Finished buck
